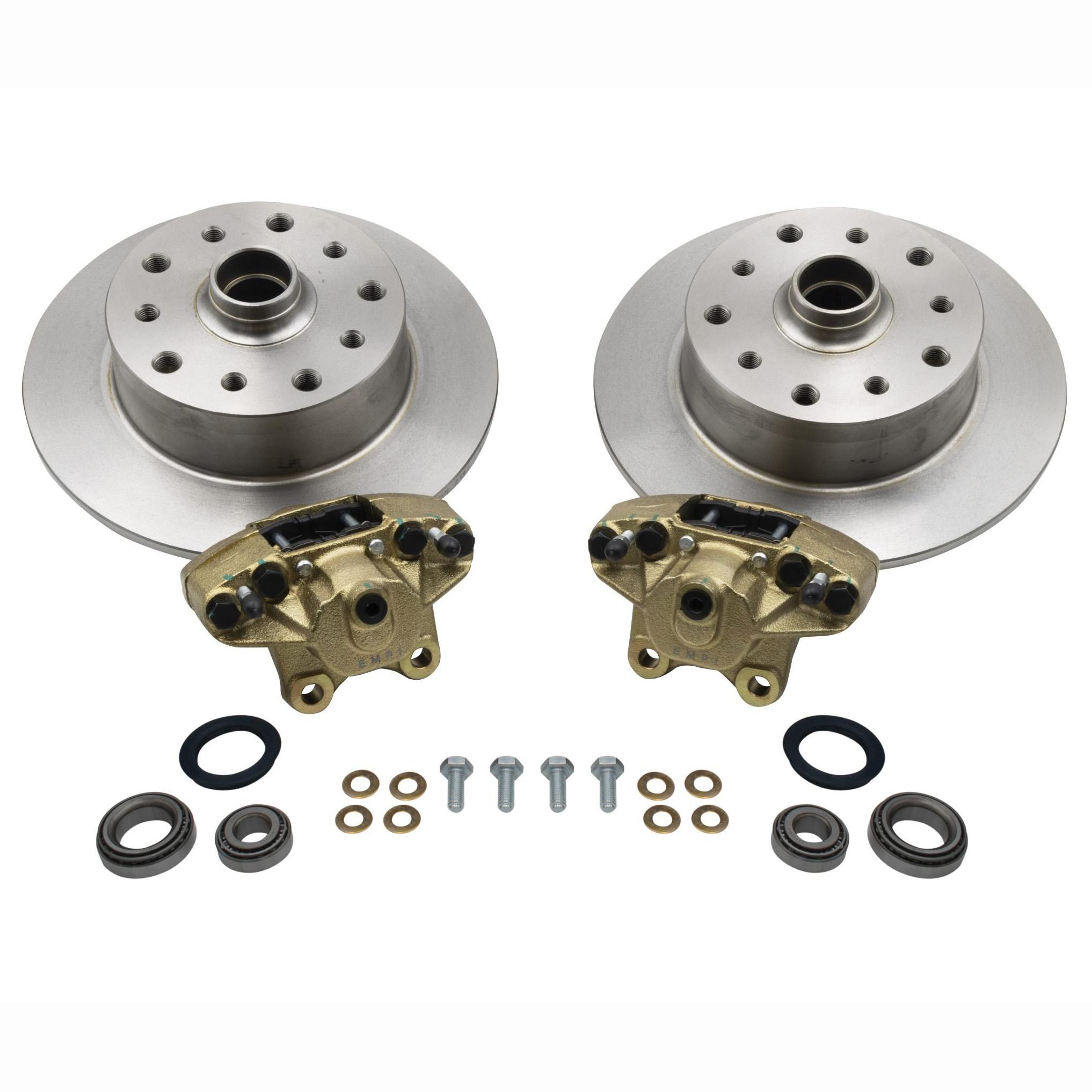

Part Number 01-22-3029-0: FRONT DISC BRAKE KIT / BALL JOINT / 5/130 AND 5/4.75 DOUBLE DRILLED WITHOUT SPINDLES
Add the benefits of disc brakes all in one package.
Kit includes:
Double Drilled Brake Discs with
5×130 Bolt Pattern and 14×1.5mm Threaded Bolt Holes
5/4.75 Bolt Pattern and 12×1.5mm Threaded Bolt Holes
Calipers
Pads
Wheel Bearings and Seals
Hardware
Requires 69 and Later Style Tie Rod Ends. Must use with minimum 15″ wheels.
Fits 1966-1977 Standard Beetle
Designed for Beam in A Box P/N 01-22-3112-0, 01-22-3116-0 and 01-22-3118-0
| Weight | 44.05 lbs |
|---|---|
| Brake Kit Type | |
| Brake Location | |
| Front Suspension Type |
PART NUMBER 01-17-2878-0 : Dual Circuit Master Cylinder Reservoir

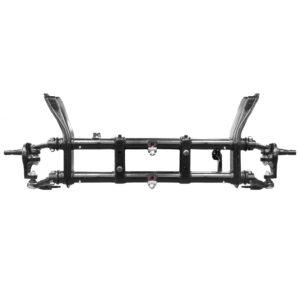

Part Number 01-22-3118-0: BALL JOINT NARROW BEAM WITH DROP SPINDLES / STANDARD TYPE-1 / 1966-77
PART NUMBER 01-16-9554-0 : MASTER CYLINDER 20.6MM BORE DUAL CIRCUIT

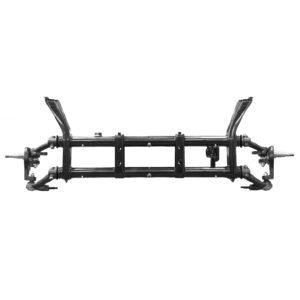

Part Number 01-22-3112-0: BALL JOINT STOCK WIDTH BEAM WITH DROP SPINDLES / STANDARD TYPE-1 / 1966-77
